400V 3Phase 22kw EV Charger Cable 32A Type 2 to Type 2 Charging Cable

Contact Now

400V 3Phase 22kw EV Charger Cable 32A Type 2 to Type 2 Charging Cable

Short Description:

400V 3Phase 22kw EV Charger Cable 32A Type 2 to Type 2 Charging Cable.Our EV charging cables are manufactured in a rigorous process for reliable quality, comply with EU RoHs and are CE and TUV certified. The material is TPU, which controls the outer diameter and keeps the cable soft when bent, and is also resistant to abrasion, oil, ozone, ageing, radiation and low temperatures, ensuring that the product can be used in a variety of environments and has excellent universality.


  • Rated Current: 16A ,32Amp (Adjustable)
  • Operating Voltage: 250V~480V AC
  • Insulation Resisitance: >1000M
  • Therminal Temperature rise: <50K
  • Withstand Voltage: 2000V
    • Send email to usSend email to us

    Product Detail

    Product Tags

    400V 3Phase 22kw EV Charger Cable 32A Type 2 to Type 2 Charging Cable

    Materials

    Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
    Contact Pin: Copper alloy, silver or nickel plating
    Sealing gasket: rubber or silicon rubber

    TPU insulation,TPU Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196

    Product Model HENGYI-EVFM-16A-SP
    HENGYI-EVFM-32A-SP    		 HENGYI-EVFM-16A-TP
    HENGYI-EVFM-32A-TP
    Rated Current 16A / 32A Single Phase 16A / 32A Three Phase
    Operation Voltage AC 250V AC 480V
    Insulation Resistance ＞1000M ( DC 500V )
    Withstand Voltage 2000V
    Pin Material Copper Alloy, Silver Plating
    Shell Material Thermoplastic,Flame Retardant Grade UL94 V-0
    Mechanical Life No-Load Plug In / Pull Out ＞10000 Times
    Contact Resistance 0.5m Max
    Temperature Rise ＜50K
    Operating Temperature -30°C~+50°C
    Impact Insertion Force >300N
    Waterproof Degree IP55
    Cable Protection Reliability of materials,antiflaming,pressure-resistant,
    abrasion resistance,impact resistance and high oil
    Certification TUV,CE Approved
    Model Current Phase Cable Specification Color Cable Length
    HENGYI-EVFM-16A-SP 16Amp 1Phase 3 X 2.5mm + 1 X 0.5mm Black
    Orange
    Green    		 (5M ,10M)
    The length of
    cable can be customized
    HENGYI-EVFM-32A-SP 32Amp 3 X 6.0mm+1 X 0.5mm
    HENGYI-EVFM-16A-TP 16Amp 3Phase 5 X 2.5mm + 1 X 0.5mm
    HENGYI-EVFM-32A-TP 32Amp 5 X 6.0mm+1 X 0.5mm

  • Previous: 16A 32A Type 1 to Type 2 EV Charging Cable EVSE Electric Car Charger
  • Next: China Factory EV Charger 32A 230V 7.2kw Type 2 to Type 2 EV Charging Cable
  • EV Charger Nanufacturer
  • Ev Charging Cable
  • Type 2 EV Charging Cable
  • Type 2 To Type 2
  • Type 2 to Type 2 EV
  • Type 2 to Type 2 EV Charging
  • Type 2 To Type 2 Ev Charging Cable
    • Write your message here and send it to us

    Related Products

    16A 32A Type1 J1772 Plug with 5m Spiral EV Teth...

    16A 32A Type1 to Type2 EV Charging Cable EVSE E...

    22KW 32A 3Phase 5*6.0mm2+2*0.5mm2 EV Charger Ca...

    3.6kW 16A 32Amp Type 2 to Type 1 EV Charging Cable

    CCS Combo 1 Socket 80A 150A 125

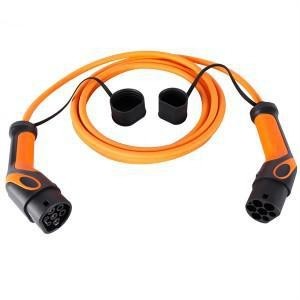

    Quality 400V 3Phase 22kw EV Charger Cable 32A Type 2 to Type 2 Charging Cable for sale
