11KW 3Phase 16A 5*2.5mm2+2*0.5mm2 EV Charging Cable AC EV Wire
Short Description:
5G2.5mm+2*0.5mm EV Wire AC EV Cable Leads.16A Three Phase Charging Wire for EV (Electric Vehicle) EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.
Send email to usSend email to us
Product Detail
Product Tags
5G2.5mm+2*0.5mm EV Wire AC EV Cable Leads
Parameters
Model: 3Phase 16A wire for EV charging
SPEC: 5*2.5mm+2*0.5mm
Reference Standard: TUV 2PfG 1908
Reted current: 16A 11KW
Working voltage: 450/750V AC
Bebding Radius8D
Retarding Test: IEC60332-1
Smoke Density: IEC61034, EN50268-2
Stewed acid gas release quantity: IEC670754-1, EN50267-2-1
Heat, cold, wear-resisting to ozone ultraviolet light
Working temperature: -45°C ~+ 125°C
CE, TUV, UL approved
16A Three Phase Charging Wire for EV (Electric Vehicle) EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.
16A Three Phase Charging Wire for EV (Electric Vehicle)
EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; Cable sheath is made from high-performance TPE, which possess characteristic as weatherability, high&low temperature resistance, rub resistance, etc.
This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.
| Physical Properties |
| Conductor |
Conductor Size |
|
EV07EE-H 5G2.5+2X0.5mm2 |
| Construction Item |
|
2.5mm2 |
0.5mm2 |
| Construction |
mm |
140/0.15±0.008 |
28/0.15±0.008 |
| Material |
— |
Bare Copper Wire |
| O.D |
mm |
2.40 |
0.91 |
| Insulation |
Material |
mm |
TPE |
| Avg.Thickness |
mm |
0.90 |
0.60 |
| Min.Thickness |
mm |
0.71 |
0.45 |
| Insulation O.D |
— |
4.2±0.15mm |
2.2±0.15mm |
| Color |
|
Brown, Blue, Yellow/Green |
Black,Green |
| Coverage |
|
% |
Non-woven fabric,100% Coverage wit!, 25% Overlapping |
| Jacket |
Material |
— |
TPE |
| Avg.Thickness |
mm |
2.00 |
| Min.Thick |
mm |
1.60 |
| Cable O.D |
mm |
14.6±0.5mm |
| Color |
— |
Orange or Black |
| Marking |
|
TV 2 PfG 1908 EV07EE-H 5G2.5mm2+2×0.5mm2 450V/750V EV Cable |
| Electric Characters |
| Reference Standard |
V |
TV 2 PfG 1908/05.12 |
| Rated Voltage |
V |
AC 450/750V |
| Temperature Rating |
℃ |
-40℃ ~ +125℃ |
| Max.Conductor Resistance at 20℃ |
/KM |
2.5mm2 ≤7.98 /KM & 0.5mm2 ≤39.0 /KM Max at 20℃ |
| Reference Current |
A |
16A |
| Cold Ben |
|
|

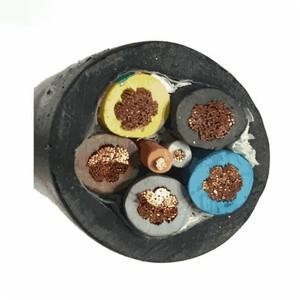

11KW 3Phase 16A 5*2.5mm2+2*0.5mm2 EV Charging Cable AC EV Wire Images
|
