UL Certificate 70A 80A J1772 Plug Type 1 EV Connector J1772 Extension Cable

Product Categories
Shanghai Hengyi Mechanical&Electrical Engineering Co., Ltd.
Contact Now

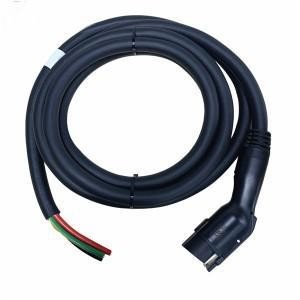

UL Certificate 70A 80A J1772 Plug Type 1 EV Connector J1772 Extension Cable

Contact Now

UL Certificate 70A 80A J1772 Plug Type 1 EV Connector J1772 Extension Cable

Short Description:

Conformity in surface design with SAE J1772, as well as product test accordance with UL 2251.
Ergonomic and streamlined designs allow for user-friendly interaction.
High level of protection against severe environment.
Products passed 5000N driveover test.
Applicable to Connection B and Connection C of IEC 61851.


  • Rated Current: 16A / 32A / 40A / 50A / 80A
  • OperationVoltage: AC 120V/240V
  • Insulation Resistance: ＞1000M（DC500V）
  • Withstand Voltage: 3200V
  • Contact Resistance: 0.5m Max
    • Send email to usSend email to us

    Product Detail

    Product Tags

    AC Charging Connector for Electric VehicleSAE J1772 Standard
    VCPU2A080DO / VCPU2A040D0 / VCPU2A032D0VCPU2A016D0 / VCPU1A016D0

    Features
    Conformity in surface design with SAE J1772, as well as product test accordance with UL 2251.
    Ergonomic and streamlined designs allow for user-friendly interaction.
    High level of protection against severe environment.
    Products passed 5000N driveover test.
    Applicable to Connection B and Connection C of IEC 61851.

    Application
    BEV, PHEV, charging pile, cord set and domestic wall-mounted charger, etc.
    Charging mode: mode2 / mode3.
    Type ofconnectionCase B / Case C.

    Product Perimeter Project Specification
    Plug Color
    Rated Current
    Rated Voltage
    Lifespan
    Flammability Rating
    Protection Level
    Operating temperature
    Main Material    		 Black
    80A / 40A / 32A / 16A
    240V AC
    10000 times
    UL 94V-0
    NEMA 4 ( Body IP67 )
    -30°C+ 50 °C
    PBT / PC / PA66 / Copper Alloy
    AC Charging Cable Spec Specification Color Standard
    80A Cable
    40A Cable3
    2A Cable
    16A Cable
    16A Cable    		 2X5AWG + 1X6AWG + 1X16AWG
    2X8AWG-1X10AWG-1X18AWG
    3X10AWG + 1X18AWG
    3X14AWG + 1X18AWG
    3X14AWG + 1X1 & AWG    		 Black
    Black
    Black
    Black
    Black    		 UL62EVE
    UL62EVE
    UL62EVE
    UL62EVE
    UL62EVJE
