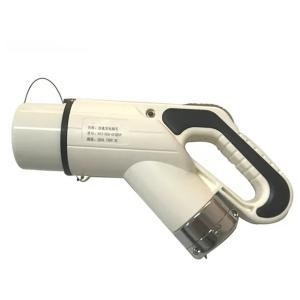

China Standard 250A GB/T DC EV Charger Plug Electric Car Charger Connector
Short Description:
Conform to the provisions and requirements of GB/T20234.2-2015, it can charge all EVs manufactured in china, correctly and effectively with high compatibility.
Using a riveting pressure process with none screw with beautiful appearance. Hand-held design conforms to ergonomic principle, plug conveniently. The head of pins using insulation design to prevent direct contact with the hand. The customer is able to install the gbt charging indoor or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent stealing.
Send email to usSend email to us
Product Detail
Product Tags
| Rated Current |
80A, 125A , 200A, 250A |
| Operation Voltage |
750V/1000V DC |
| Insulation Resistance |
＞2000M ( DC 500V ) |
| Withstand Voltage |
3500V |
| Contact Resistance |
0.5m Max |
| Terminal Temperature Rise |
＜50K |
| Operating Temperature |
-30°C~+50°C |
| Impact Insertion Force |
>300N |
| Protection Degree |
IP55 |
| Flame Retardant Grade |
UL94 V-0 |
| Certification |
CE , CQC Approved |
Product application: Electric vehicle electrical connection
GBT EV Charger Features
Conform to the provisions and requirements of GB/T20234.2-2015, it can charge all EVs manufactured in china, correctly and effectively with high compatibility.
Using a riveting pressure process with none screw with beautiful appearance. Hand-held design conforms to ergonomic principle, plug conveniently. The head of pins using insulation design to prevent direct contact with the hand. The customer is able to install the gbt charging indoor or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent stealing.
Have one or two PTC (PT100) thermistor (can match with NTC or Temperature control switch)
Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate the water from the body and enhance the safety level even in bad weather or special circumstances.
Provide OEM/ODM service to help customers expand the market easier.
