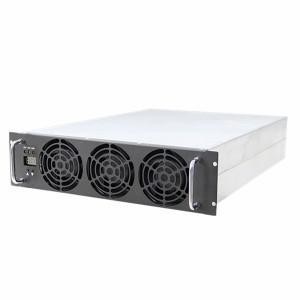

16kW 500V EV Charger Power Module for Fast DC Charging Station

Contact Now

16kW 500V EV Charger Power Module for Fast DC Charging Station

Short Description:

16kW@500V Charger Power Module is specially designed for EV DC chargers in US and CANADA market. It has high efficiency, high power factor, high power density and high reliability advantage. 3 phase 4 wire AC input, DC output voltage range is from 150 to 500VDC with 16kW output power, compliant with UL safety standard UL2202, and EN61851-21-2 EMC standard


  • DC Max Input Current: 30A
  • Input Frequency Range: 45Hz ~65Hz
  • DC Output Current: 0~35A
  • DC Output Voltage: 150Vdc ~550Vdc
  • DC Output Power: 16KW@ Voltage >400VDC
  • Operating Temperature: -40℃ ~ +75℃
    • Send email to usSend email to us

    Product Detail

    Product Tags

    16kW 500V EV Charger Power Module is specially designed for EV DC chargers.
    15KW@750V Charger Power Module REG75030G is specially designed for EV DC chargers. It has high efficiency, high power factor, high power density and high reliability advantage. 3 phase 4 wire AC input, DC output voltage range is from 150 to 750VDC with 15kW output power, compliant with CE safety standard EN61851-1EN61851-23 requirements, and EN61851-21-2 EMC standard.
